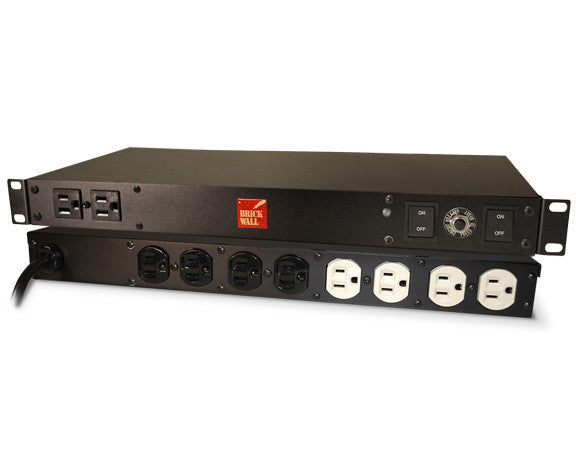

10-Outlet Rackmount Audio Surge Protector

The RM family of products represents the latest evolution of the Brick Wall Surge Filter conveniently packaged as a rackmount unit for easy power distribution. Refinements over previous models include better shielding, silent operation and an improved appearance.

For the audiophile and/or home theater enthusiast, we have included receptacles isolated by duplex to help prevent the "cross talk" between digital and analog components.

These units are an excellent choice for protection your complete home theater or audio system; from your amplifier to your HDTV to your DVR.

And of course as a surge suppressor/line filter, both in its endurance and performance capabilities, a Brick Wall Surge Filter still sets the world's standard. There is no better powerline protection product available today.

All standard rackmount products are single unit high and 19" wide in rackmount form.

  • Made in the USA
  • 8' grounded 3-wire #14 SJT line cord.
  • Magnetic shielding steel cabinet: Black.
  • Self-test circuit with visual indicator.


Outlets Available 10 isolated by duplex (10 master switched, 4 with secondary switch)
Load Ratings 15A at 120 volts, single phase, 50-60 Hz; full load regulation 1%.
Receptacle Isolation Low pass filter isolation assures >40db load to load isolation for EFT bursts.
Endurance Test 1,000 surges of 6,000 volts, 3,000 amperes, SRV <400 volts, no failures, L-N (ground wire protection) mode, U.S. Gov't. Mode 1.
Limiters Series surge reactor current limiter; cascaded, auto-tracking dual polarity voltage limiters; dual pulse inverters. Parameters optimized for switch-mode power supply protection.
Clamping Voltage Onset 172 volts nominal; 2 volts above peak line voltage (auto-tracking).
EMI/RFI Filter Response (bi-directional, wave tracking): With 50 ohm Rg load: 3db at 5kHz; 26dB at 100kHz; 38dB at 300kHz.
Let-Through Slew Rate 5,000 volt/µs disturbance reduced to 28v/µs within AC power wave envelope, and less than 10v/µs outside the power wave envelope.
Maximum Applied Surge Pulse Joule Rating Unlimited rating (due to surge current limiting) (8x20µs).
Maximum Applied Surge Pulse Voltage 6,000 volts (1.2 x 50µs) (Industry Standard rating).
Maximum Applied Surge Pulse Current >100,000 amperes (unlimited due to current limiting) (8 x 20µs).
Endurance, C62.41-1991 (formerly IEEE 587) Category B3 (C1) pulses 2kv>100,000; 4kv>10,000; 6kv>1,000 (NRTL verified).
Dimensions 1.75" H x 19" W x 8.2" D
Weight 8 lbs.
